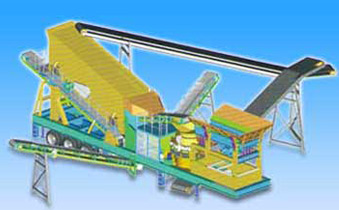

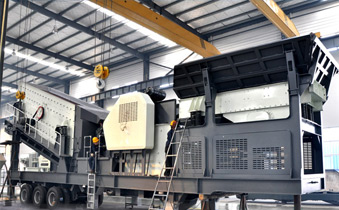

Cone Crusher & Vibrating Screen
Combination Mobile Crushing Plant
Combination Mobile Crushing Plant
Product introduction
Closed-circuit mobile crushing plant with self-loaded belt conveyor, there is a suffix B after the model. Open-circuit mobile crushing plant with a "v" shape belt conveyor. There is a suffix K after the model.
Features
Technical data
| Technical data\Model | Y3S54G83Y55K | Y3S54G83Y75K | Y3S86G14Y160K | Y3S26G14Y220K |
| Transportation Length (mm) | 13500 | 14000 | 16700 | 16700 |
| 14500 | 16000 | |||
| Transportation Width (mm) | 2700 | 2700 | 2900 | 3300 |
| Transportation Height (mm) | 4000 | 4000 | 4400 | 4400 |
| Maximum Length (mm) | 14000 | 14600 | 19000 | 19000 |
| Maximum Width (mm) | 2800 | 2800 | 3150 | 3500 |
| Maximum Height (mm) | 6200 | 6200 | 6700 | 6700 |
| Weight (T) | 48 | 54 | 72 | 71 |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Cone Crusher | PYB900 | ZYS36 | ZYS51 | ZYC1500 |
| Belt Conveyorunder vibrating screen | B650*7M | B650*7M | B800*8M | B1000*8M |
| Belt conveyor above Vibrating Screen | B650*15M | B650*15M | B800*15M | B1000*16M |
| V shape belt conveyor | B650*14M | B650*14M | B800*14M | B1000*15M |
| Belt conveyor for re-crushing-material | B500*3.5M | B500*4M | B650*3M | B650*3M |
| Vibrating Feeder | GZD-850*3000 | GZD*850*3000 | GZD-1100*4200 | GZD-1100*4200 |
| Vibrating Screen | 3YZS1548 | 3YZS1548 | 3YZS1860 | 3YZS2160 |
