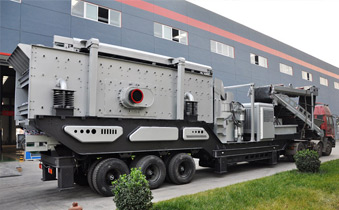

Mobile Cone Crushing Plant
Product introduction
Mobile Cone Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Features
Secondary crushing, crushing and screening, equipped with belt conveyor, high working efficiency, widely application for different raw material.
Technical data
| Y3S154Y55 | Y3S184Y75 | Y3S186Y160 | Y3S216Y220 | |
| Transport length | 12000 | 12000 | 13500 | 13500 |
| Transport width | 2550 | 2800 | 2800 | 3000 |
| Transport height | 3900 | 3900 | 4200 | 4200 |
| Max length | 13700 | 13700 | 15200 | 15200 |
| Max width | 2800 | 3150 | 3150 | 3500 |
| Max height | 5700 | 5700 | 6400 | 6400 |
| Weight | 34 | 39 | 54 | 58 |
| Tire configuration | C | C | C | C |
| Model | PYB900 | CS75 | CS160 | HPC-220 |
| Max feeding size | 115 | 102 | C-150 F6 | C13 F6 |
| Adjusting range if output size | 15-50 | 9-38 | C13 F6 | C150-430 F90-260 |
| Capacity | 50-90 | 45-165 | C120-240 F55-180 | C150-430 F90-260 |
| Belt model | B650*7M | B650*7M | B800*8M | B1000*8M |
| Screen model | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
